AMAZONE sets the standard

AMAZONE mounted sprayers, the UF 02 with extremely stable tanks at minimum weight and volumes of 1600- and 2000 -litre.

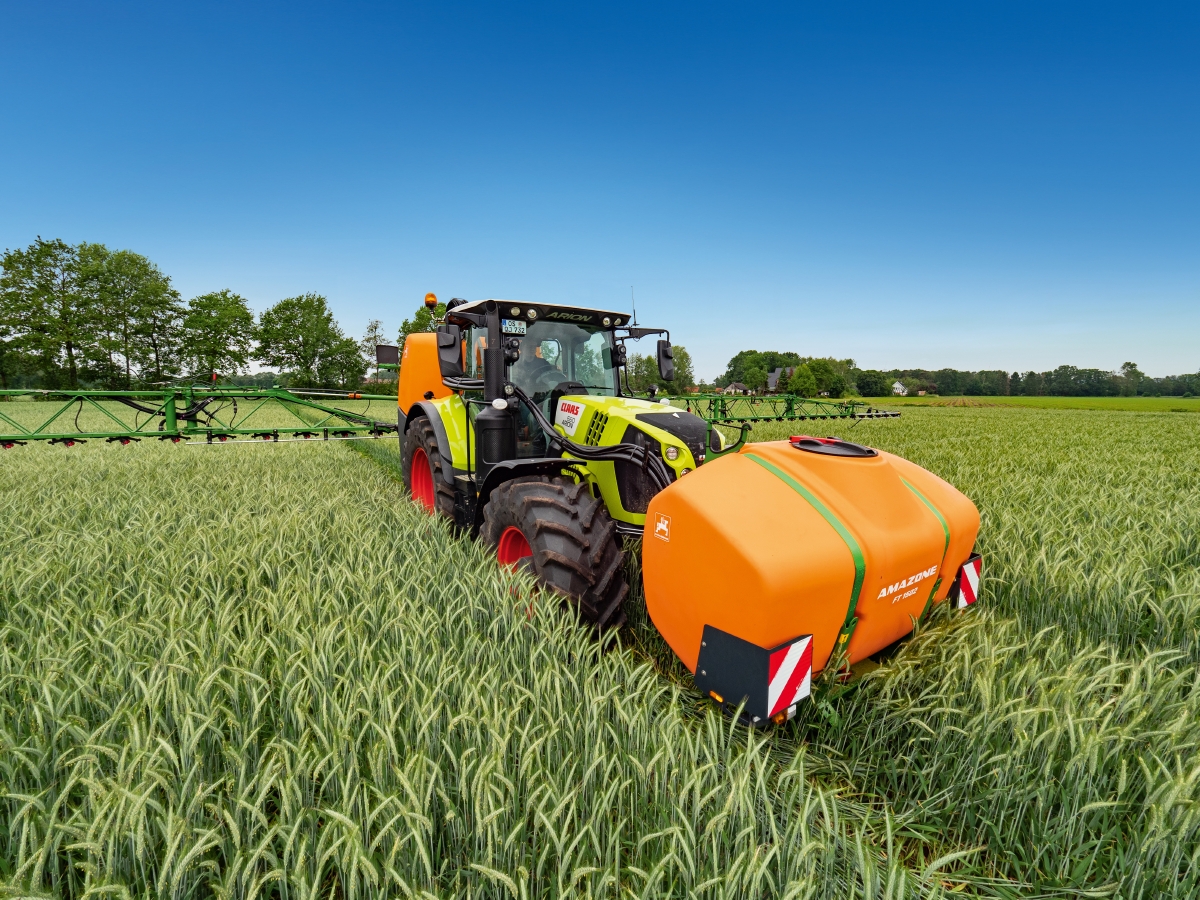

The UF 02 series is characterised by high operating comfort. Two FT front tanks with 1000- and 1500-litre tank capacity are on offer to extend the volume.

The UF 02 mounted sprayer has booms in working widths from 15 to 30 metres. UF 02 is particularly distinguishable by its compact design, as well as its simple and comfortable operation. In combination with the FT front tank, the tank capacity of the highly-manoeuvrable tractor-mounted combination can be increased to 3,500 litres. That sets the standards for operational comfort and maximum precision,thanks to the optional FlowControl+ System and the compact design, the UF front tank is the ideal solution for increasing the overall capacity of the UF.

The enclosed SmartCenter and integrated, dust-tight storage compartment prevents any contamination

SmartCenter: tailored operator valve chests – from the intuitively-operated

Standard-Pack through to the Comfort-Pack with TwinTerminal 3.0 The new SmartCenter operator station is equipped with a large hinged door that protects all the relevant operating controls and the induction bowl from dirt and water splashes.

In the inner panel of the swing door, a holder for gloves and a measuring jug is provided. As the swing door opens backwards towards the boom, it protects the operator from chemical contact on his clothing from the booms plus, at the same time, creates plenty of free space between it and the tractor.

The high-performance induction bowl with a suction capacity of up to 150 l/min ensures the minimum fill times and a homogeneous spray agent mixture.

The UF 02 is equipped,with a single pump system that has a capacity of 300 l/min.Now available with Hydraulic Pump Drive.During the filling procedure at a nominal pump speed, the full pump capacity is available for filling the spray agent tank. At the same time, either the contents of the induction bowl can be drawn out via the venturi or the total fill capacity can be increased up to 450 l/min.

High-performance self-priming, low maintenance piston diaphragm pump for large application rates even at high spray pressures

The 20 l hand wash tank is positioned above the induction bowl and it is completely integrated into the machine design. The wash water runs directly into the induction bowl and is sucked into the tank. In addition, an easily-accessible soap dispenser is positioned underneath the hand wash tank. As standard, the UF 02 features a 30 l dustproof and splash water safe clothing locker for carrying any personal protective equipment.

In conjunction with Comfort-Pack, the TwinTerminal 3.0 is also utilised. In addition, automatic fill stop for the suction fill is also included.Duringapplication, the intensity of the agitation is regulated depending on the tank fill level. As the fill level decreases, the agitation capacity is automatically reduced down until it is completely switched off preventing the formation of foam at a low fill level. In addition, the automatic agitation regulation offers auto-dynamic agitator control. This means: If larger application rates are required at the nozzle, the agitator output is reduced. When the nozzles are switched off on the headland, the agitation is automatically restored.

After the spraying operation is finished, Comfort-Pack provides fully automatic cleaning which can be controlled completely remotely from the tractor cab. Additional functions such as boom rinsing, the cleaning the spray liquid circuit from heavy deposits or a defined dilution of a subsequent tank mix in the field are all functions included within Comfort-Pack.
